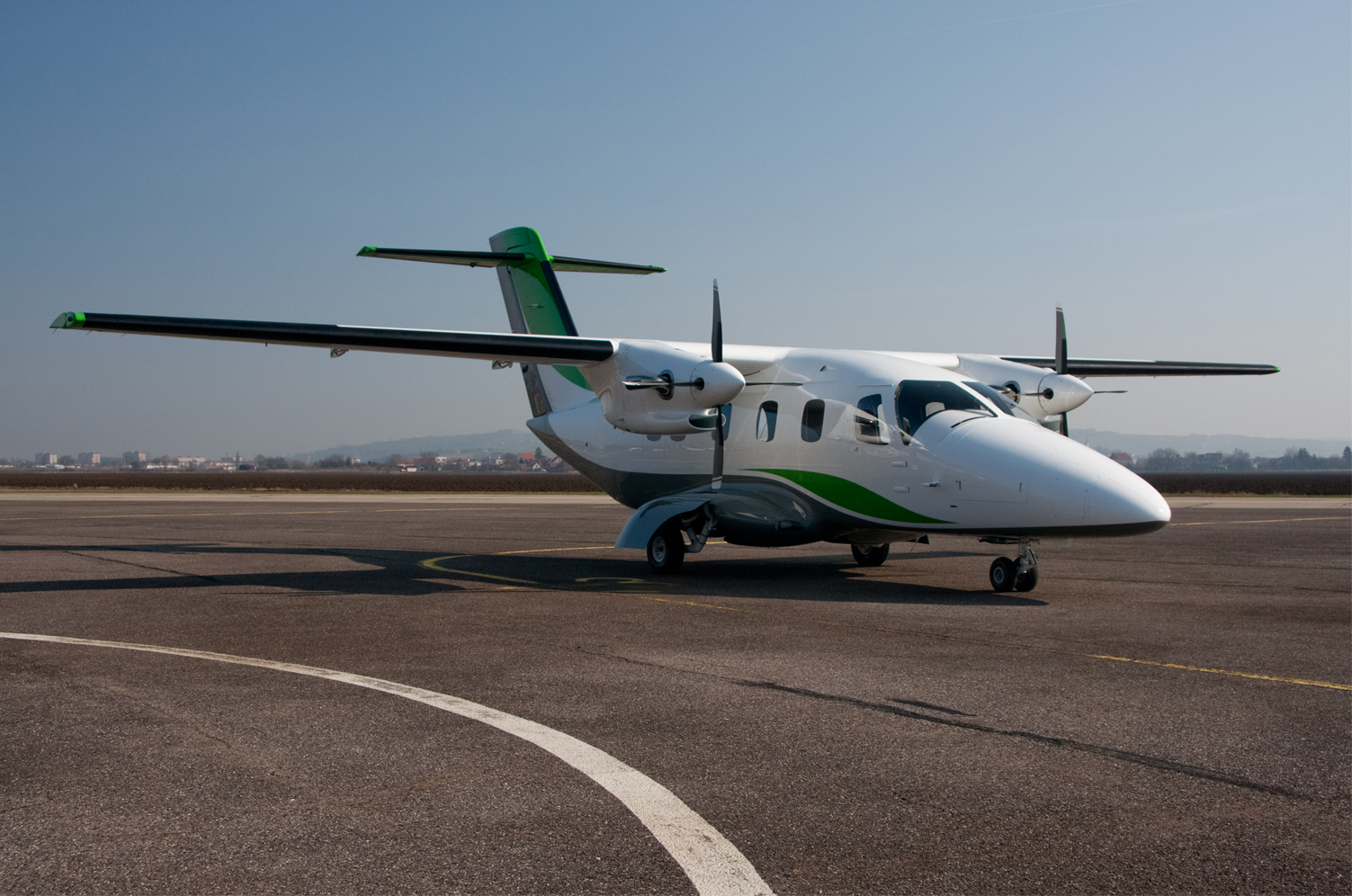

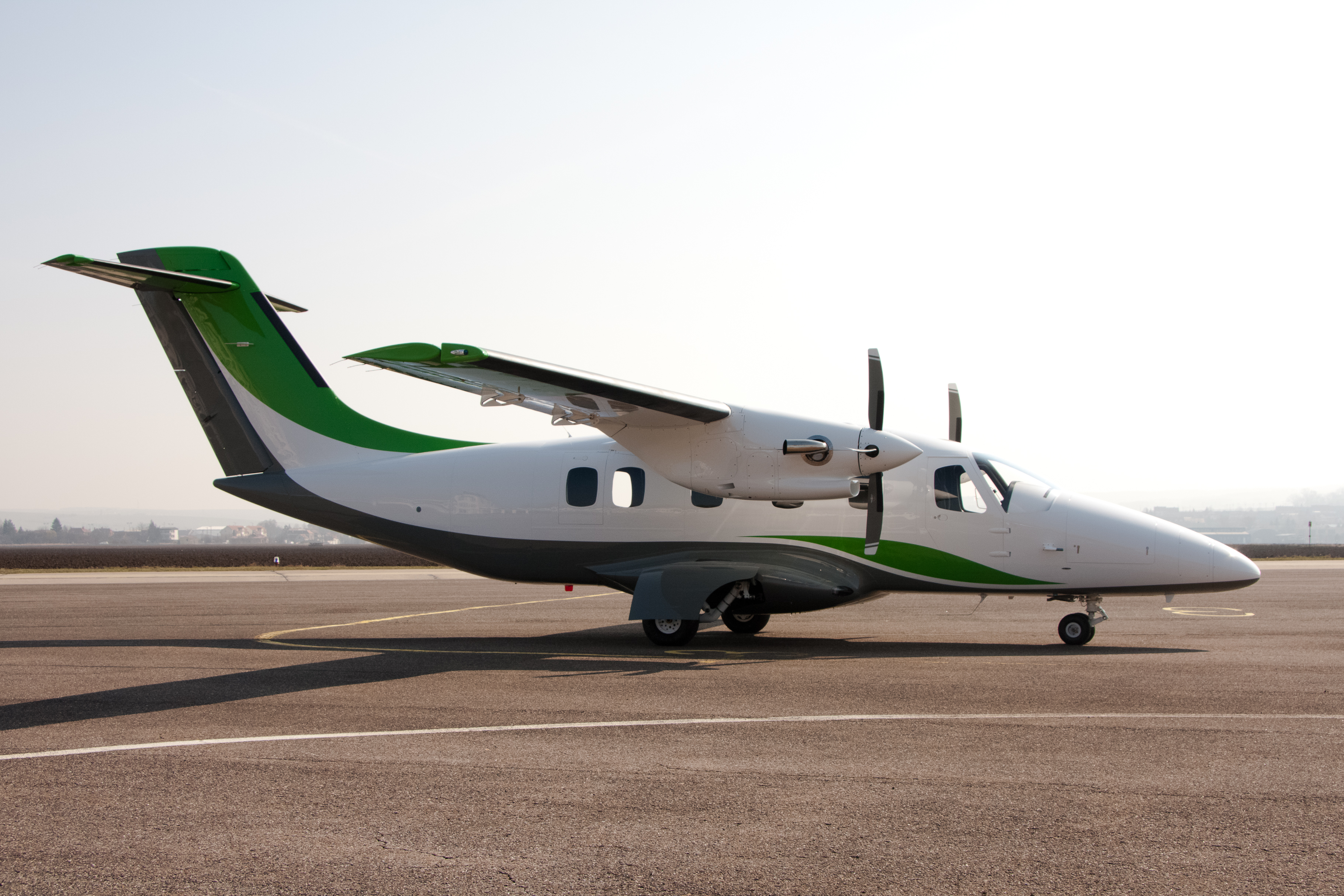

The EV-55 is of conventional high-wing utility design, with its horizontal stabilizer mounted near the top of its fin. The prototype aircraft is powered by two Pratt & Whitney PT6A-21 turboprop engines (536 shaft horsepower), each driving a four-blade propeller. The wing is mounted atop a nearly-square fuselage, which has five windows per side. The trailing-link tricycle landing gear retracts into the nose section or pods on the lower fuselage. Expected maximum cruise speed is 220 knots (407 kph).
General characteristics
Crew: 2
Capacity: 14 passengers
Length: 14.35 m (47 ft 1 in)
Wingspan: 16.10 m (52 ft 10 in)
Height: 4.66 m (15 ft 3 in)
Empty weight: 2,626 kg (5,789 lb)
Gross weight: 4,600 kg (10,141 lb)
Powerplant: 2 × Pratt & Whitney PT-6A-21 turboprop
Performance
Maximum speed: 408 km/h (254 mph; 220 kn) at 10,000 ft (3,050 m)
Range: 2,258 km (1,403 mi; 1,219 nmi)
Service ceiling: 8,839 m (29,000 ft)
